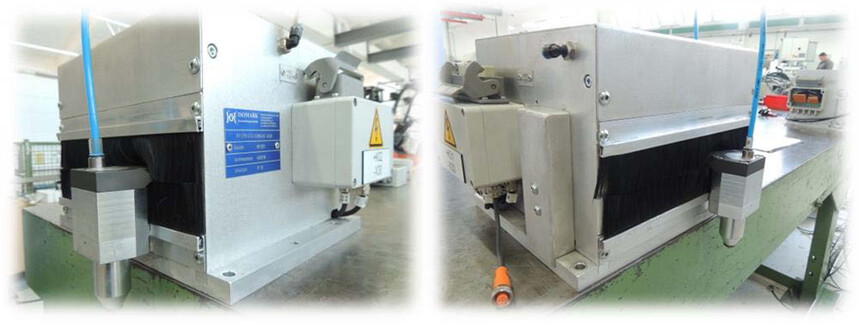

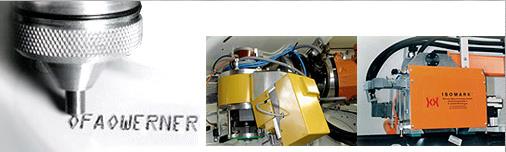

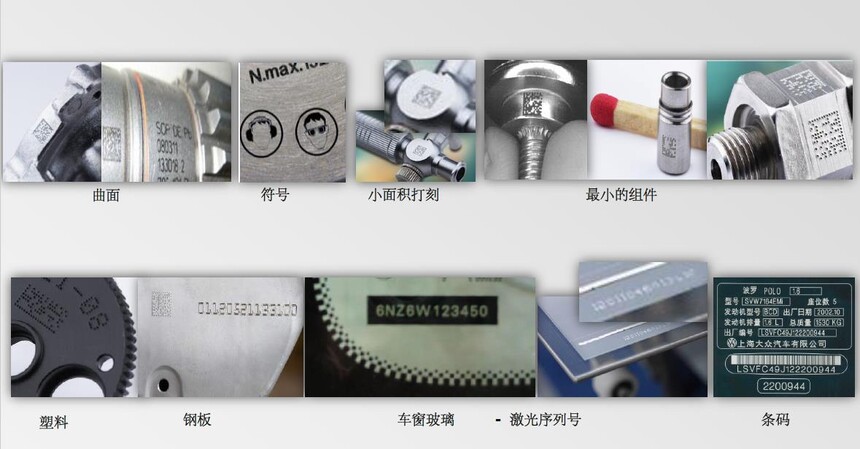

Scribe system function •Diamond or hard metal needles •Any text, logo, and special characters • Low noise approximately 70 dB (A) •As a subsystem, or as an installation unit in robot units, production lines, and desktop machines Range •Untreated materials such as steel plates, aluminum, and plastics •Chassis number in unpainted or unpainted surfaces •Suitable for components that make up a speaker, as it has low noise Advantage •The imprinting head is sturdy, reliable, and has low maintenance costs •Designed to be maintenance free •The design of mechanical components far exceeds the required service life load. Standard model

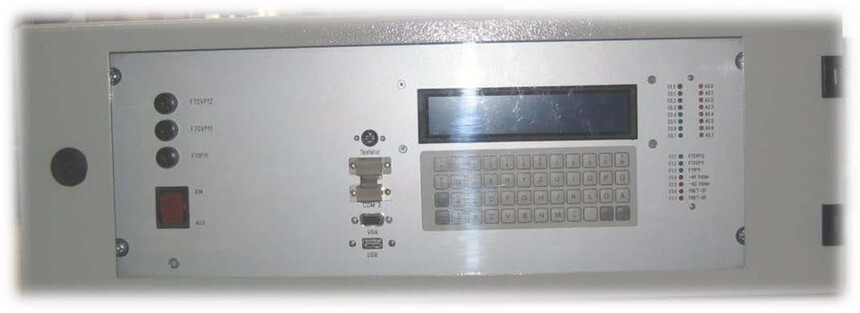

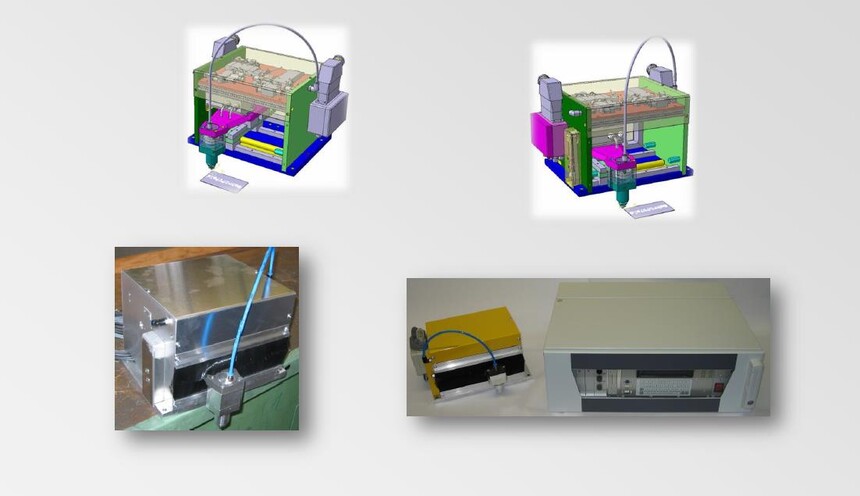

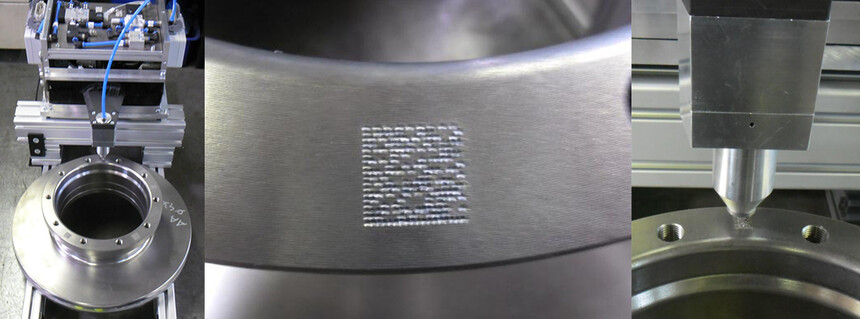

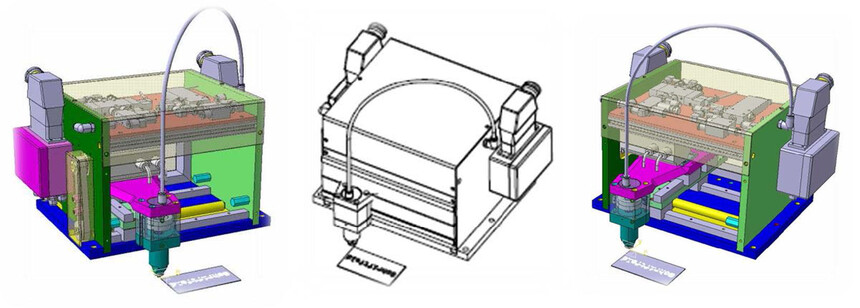

Standard model •Modular structure •Separate control and marking heads • Compact marking heads •Using diamond or hard metal needles • Low noise •Control can be connected to the PLC •Marking components using plain text and data matrix code, with the same marking header •Low maintenance costs Engraving parameters •In the engraving area, text with a line of 24 characters and a character height of 5mm can be engraved into one line without moving the component or the entire engraving head •Character height: 4 to 8mm •Direction: Any, adjustable within the range of 0 ° to 359 ° •Characters: large letters, numbers 0 to 9, special characters •Symbol size: 10x10 to 24x24, continuous engraving •Speed: •About two characters per second •The engraving time for plain text is approximately 9 seconds (including initial operation) •DMC 14x14 for approximately 6.8 seconds (including initial operation) •DMC 18x18 for approximately 7.3 seconds (including initial operation) To carve a head •Dimension: •Width: 360 mm •Height: 190 mm •Depth: 340 mm •Weight: approximately 17 kg •Font area: •make an appointment 100 x 60 mm More technical data Power supply voltage: 230 V Frequency: 50 Hz Power supply: 250 VA Control voltage: 24 V DC 230V AC connection: grounding plug with 4 meter cable or HAN6B Working pressure: 3 bar Maximum pressure: 4 bar Minimum pressure: 2 bar Connection: KSS NW7,2 Noise level:<70 dB (A) Working temperature: 10... 40 ° C Storage temperature: -10... 70 ° C control system •ProfiNET connection •The engraving parameters are sent to the engraving controller through PLC •Integrated display for status and error display •Firmware can be updated through USB interface •Manual input through membrane keyboard (password protected) •19 inch chassis for integration into existing racks size： •width:600 mm •height:190 mm •depth:400 mm •weight:26 kg Disc shaped workpiece engraving
|
