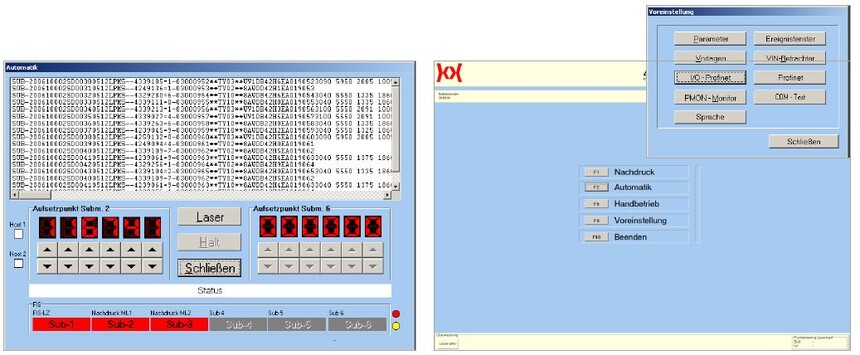

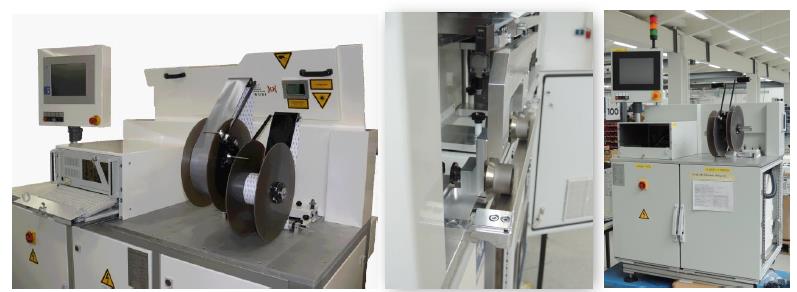

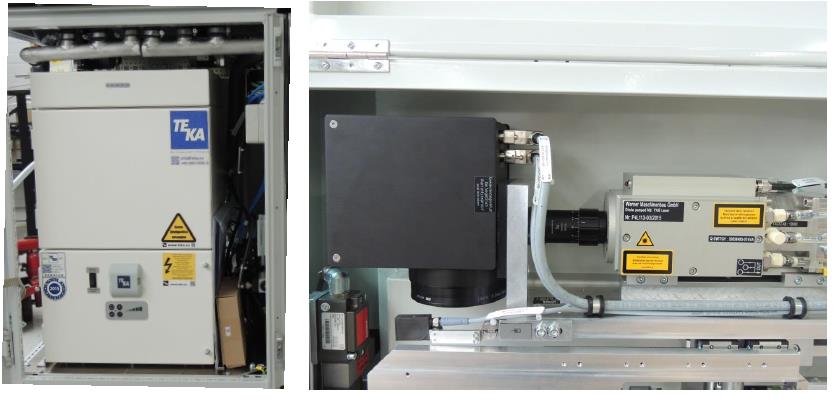

laser marking function • Any text, logo, and special characters • Fiber laser or diode laser range • Meeting the needs of large-scale production • Anti tampering foil and data matrix code, etc • Metals, castings, glass, foil, and plastics advantage • Modern facilities • high availability • Very easy to maintain Introduction to Laser System - Internal development (diode Nd: YAG laser) - The laser beam power is about 40 watts - Integrated cooling and suction Construction of laser system -Underframe made of light metal profiles -Size approximately 800 x 1200 x 1500 mm (WxDxH) -Using two parts - Feeding device - Cutting knife Control of laser systems - Use a keyboard, barcode scanner, or higher-level system interface to specify printing data - Control and visualization using the latest generation PC - Software with error diagnosis and help files

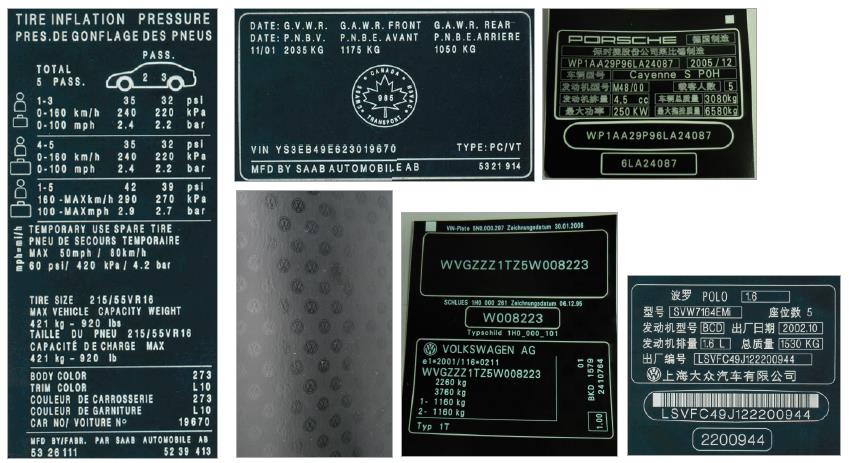

Example of foil labels

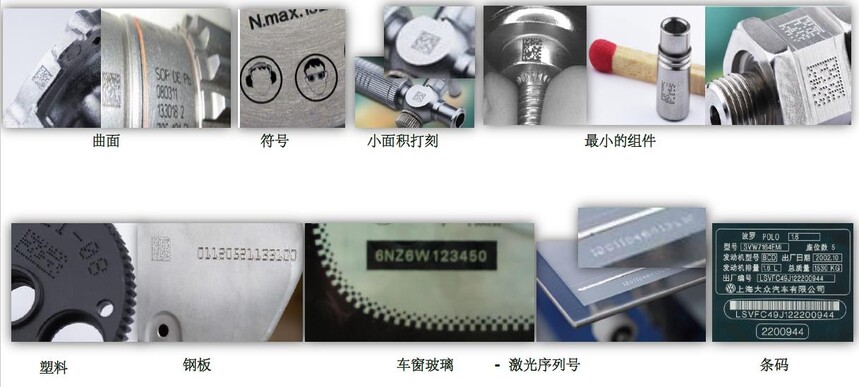

Example
More technical data power supply£º220V / 50Hz air supply£º5 bar compressed air Printing speed: up to 1 m/sec |
